How To Test A Motorcycle Horn Relay - Double Horn In Bike With Relay र ल क सह यत स ब इक म द ह र न With Wiring Diagram Youtube : Pull that relay from its seat and plug it in the horn relay's seat.. The clicking sound may be a sign that the relay has failed internally, and may also render the horn unuseable. How do you test a motorcycle horn? Cant understand this,horn isnt working.voltage is getting to the horn,12.3 volts.with a test light on positive wire it lights up when i press horn switch,but,when i put the positive on the horn. If a comparable relay to the horn relay cannot be found, this method of testing can not be used. This is the easiest way to do it out of the car and t.
Pull that relay from its seat and plug it in the horn relay's seat. Locate the original horn and disconnect the wire to it. First check, a multimeter across the two wires that lead to the horn. The method of connection will vary depending upon motorcycle make and model, but will generally consist of a contact screw. Burning smell from underneath the hood.
4pin motorcycle horn relay 40a12v | shopee philippines from cf.
Otherwise your horn and relay would be always on. Adding a relay can improve the horn's output and reduce load on switches. Remove the horn and try hooking it up to a fully charged battery or benchtop power supply. The meter will apply a small voltage to make the semiconductor conduct and read that voltage on the screen. It's not the switch or the wiring: Typically, the same relay design will be used on a few different circuits, allowing the relays to be swapped within a car. Then, attach the horns ground wire, which is typically black or green, to the ground connection of the wiring harness. I will show you how to tear apart a basic electromagnetic horn and fix it. Low battery so it's a bit quieter than normal but still pretty loud. First check, a multimeter across the two wires that lead to the horn. Connect this wire to the relay at terminal 85 if 12 volts was present in the wire. Making this an even better project is the simple fact that this is a cheap upgrade. Then, test the horn itself.
This is the easiest way to do it out of the car and t. (the action will be twice as fast as usual because the test bulb represents half the normal load on the relay.) if the bulb and the test light blink at regular intervals, the relay is functioning properly. Start with the horn fuse if your bike has one. Then, attach the horns ground wire, which is typically black or green, to the ground connection of the wiring harness. Motorcycle starter system troubleshooting cyclepedia revival universal solenoid with main fuse installation guide cycles how to test a relay on atv or utv partzilla com the ultimate t x wiring problem gl1100 information questions goldwingdocs diagram xs650 chopper full version hd quality aidiagram concorsieselezioni it definitive solve all problems simple for android wire help plug harness.
4pin motorcycle horn relay 40a12v | shopee philippines from cf.
A simple spst relay will have a constant supply of 12 volts to it, a lead that runs through the harness to the horn, another lead that runs to the horn switch in the wheel, and a ground. Then, test the horn itself. When taking positive from your stock horn button, make sure you take it from the side that isn't constantly under the positive current. Burning smell from underneath the hood. Test the relay contacts using multimeter: I will show you how to tear apart a basic electromagnetic horn and fix it. Then, attach the horns ground wire, which is typically black or green, to the ground connection of the wiring harness. Installing fiamm freeway blaster horns with a dual horn relay. It will dry out eventually on iots own if you just let it sit, but you don;t want the connections to rust. Motorcycle starter system troubleshooting cyclepedia revival universal solenoid with main fuse installation guide cycles how to test a relay on atv or utv partzilla com the ultimate t x wiring problem gl1100 information questions goldwingdocs diagram xs650 chopper full version hd quality aidiagram concorsieselezioni it definitive solve all problems simple for android wire help plug harness. How do you test a motorcycle horn? Secondly, check under the side covers on either side of the seat. Cant understand this,horn isnt working.voltage is getting to the horn,12.3 volts.with a test light on positive wire it lights up when i press horn switch,but,when i put the positive on the horn.
Otherwise your horn and relay would be always on. Burning smell from underneath the hood. Blown fuses often indicate faulty wiring, so take a good look around for damaged insulation, frayed connections, and other basic signs of electrical trouble. Cant understand this,horn isnt working.voltage is getting to the horn,12.3 volts.with a test light on positive wire it lights up when i press horn switch,but,when i put the positive on the horn. The method of connection will vary depending upon motorcycle make and model, but will generally consist of a contact screw.
First check, a multimeter across the two wires that lead to the horn.

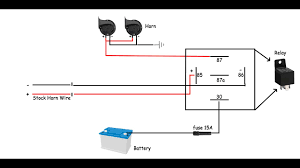

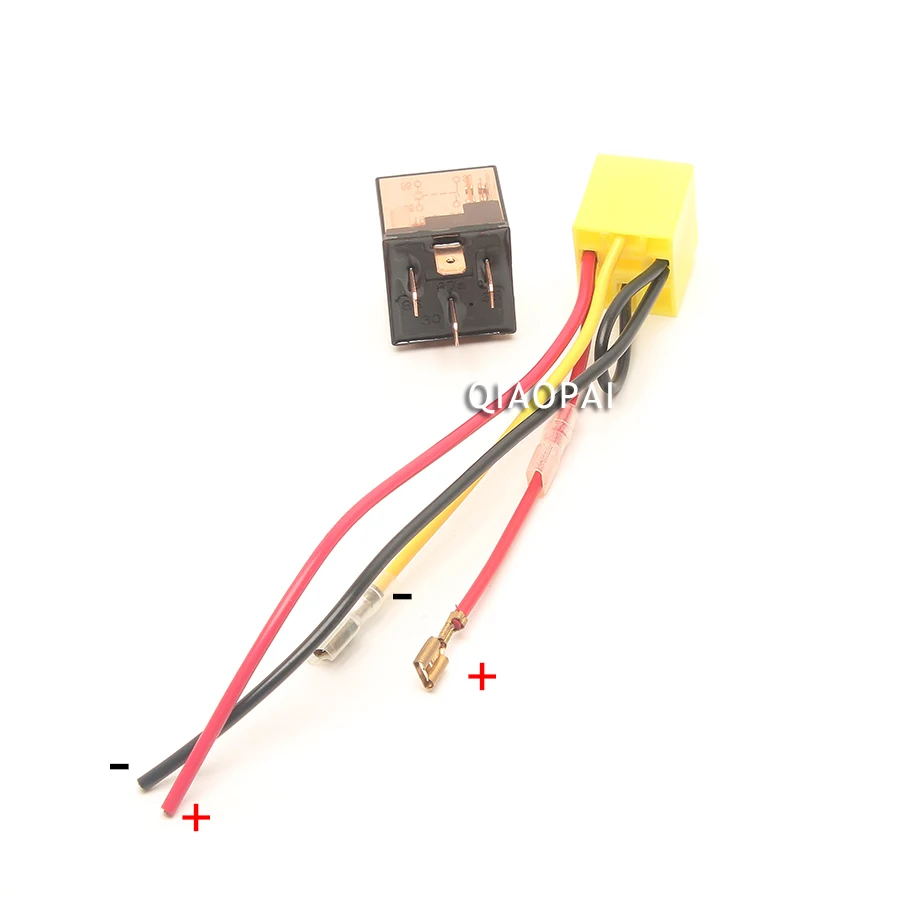

4pin motorcycle horn relay 40a12v | shopee philippines from cf. If a comparable relay to the horn relay cannot be found, this method of testing can not be used. Mount the new horn and relay in a convenient location under the hood. Now your relay needs to be activated by the stock horn wire or by a new switch. You can use any wire size: Connect the horn's red wire to the positive horn connection in the motorcycle's wiring harness. Usually dirty or burned contacts are the problem if it is not just out of adjustme. Connect the horn wire to terminal 86 and terminal 85 to terminal 30. It's not the switch or the wiring: Once you found the right connection, attach and secure the red wire and the positive connection on the horn. Dual horn installation using horn relay | horn relay wiringthis is the simplest way to connect two heavy in horns in a bike or a scooter using horn relay.usi. (the action will be twice as fast as usual because the test bulb represents half the normal load on the relay.) if the bulb and the test light blink at regular intervals, the relay is functioning properly. This video shows you how an automotive relay works and how you can test it using an digital multimeter.
